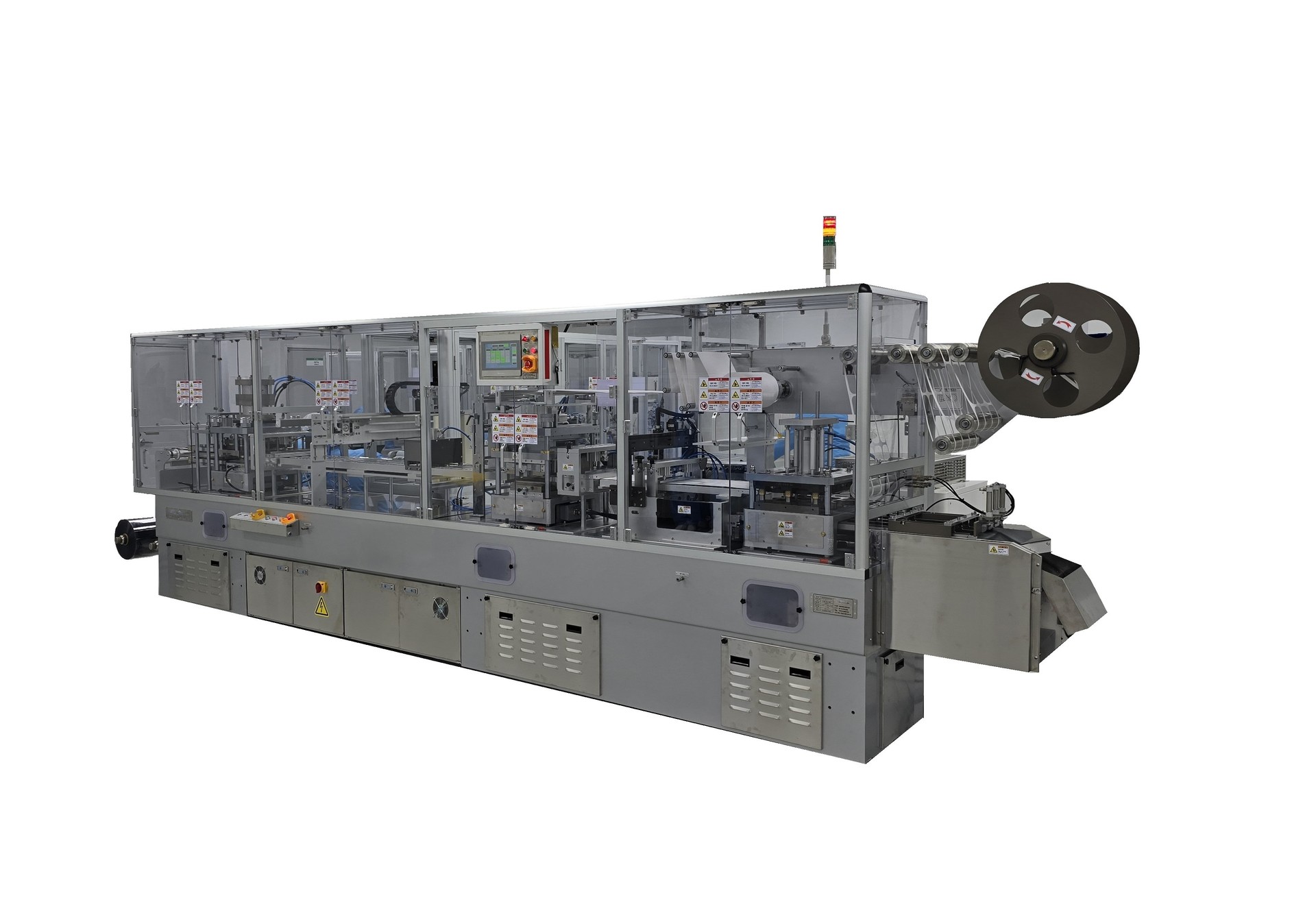

blister

packaging machine

BT-7

TECHNICAL DATA (BT-7)

Machine speed

Max. 20 Stroke/min

Film/foil width

Max. 320mm

Film/foil advance

Max. 250mm

Effective surface

300 x 230mm

Forming depth

25mm

Power consumption

20 KVA

Electric connection

AC380V, 50/60Hz, 3-Phase

Air consumption

950 NL/min

Air pressure

6 kgf/cm²

Net weight

4,000 kg

Dimension (H x W x L)

1,975 (H) x 1,060 (W) x 6,600mm (L)


1. 제품 접촉부는 스테인리스 스틸 사용

2. GMP 디자인 채택

3. 기계 정지시 접착 상부가 제품 보호 및 필름 수축 방지를 위해

      접착 상부가 자동상승 (1”)

4. 컨트롤박스를 전면에 배치하여 공간활용도를 높임

5. 작업자의 조작과 동선을 고려한 무빙 터치스크린 적용

6. 자동 충전장치 등 옵션장비를 장착할 수 있는 제품충전구간 확보

7. 성형부와 이송부는 서보 모터 적용으로 압축 공기 소모량 최소화

8. 블로잉 성형과 플러그 성형이 가능


1. Contact with products parts are consists of stainless

2. Fully complied GMP design

3. Automatically lift upper-sealing part when machine stop for product       protection and prevent film contraction (1“)

4. Placed the control box at the front side to increase space occupancy

5. Applying moving touch screen considering operator's operation and       movement line

6. Secured space to install charging equipment in product filling

     section

7. Applying servo motor in Forming and Draw-off section to minimize        air consumption

8. Possible to blowing and plug forming
